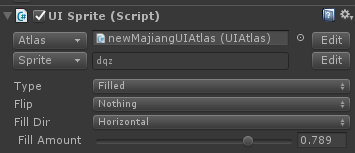

准备一张后面带有三个点的图片,表示正在什么种的意思的。做成UISprite,Type设置Filled,Dir为水平,如下
编写代码控制FillAmount变量,注意点的间隔,可以在可视化的时候测量出来或则做UI的时候固定好
void ShowHSZing(bool showed) { if (showed) { hsz_gameObject.SetActive(true); StartCoroutine(ShowHSZingAni()); } else { hsz_gameObject.SetActive(false); StopCoroutine(ShowHSZingAni()); } } IEnumerator ShowHSZingAni() { UISprite sprite = hsz_gameObject.transform.GetChild(0).GetComponent<UISprite>(); float from = 0.806f; float to = 0.938f; sprite.fillAmount = from; float speed = (to - from) / 3; int timer = 0; while (true) { sprite.fillAmount = sprite.fillAmount + speed; timer++; yield return new WaitForSeconds(0.2f); if (timer % 3 == 0) { sprite.fillAmount = from; } } }
结果:
