读一读

导出:

//DoTween
typeof(DG.Tweening.AutoPlay),
typeof(DG.Tweening.AxisConstraint),
typeof(DG.Tweening.Ease),
typeof(DG.Tweening.LogBehaviour),
typeof(DG.Tweening.LoopType),
typeof(DG.Tweening.PathMode),
typeof(DG.Tweening.PathType),
typeof(DG.Tweening.RotateMode),
typeof(DG.Tweening.ScrambleMode),
typeof(DG.Tweening.TweenType),
typeof(DG.Tweening.UpdateType),

typeof(DG.Tweening.DOTween),
typeof(DG.Tweening.DOVirtual),
typeof(DG.Tweening.EaseFactory),
typeof(DG.Tweening.Tweener),
typeof(DG.Tweening.Tween),
typeof(DG.Tweening.Sequence),
typeof(DG.Tweening.TweenParams),
typeof(DG.Tweening.Core.ABSSequentiable),

typeof(DG.Tweening.Core.TweenerCore<Vector3, Vector3, DG.Tweening.Plugins.Options.VectorOptions>),

typeof(DG.Tweening.TweenCallback),
typeof(DG.Tweening.TweenExtensions),
typeof(DG.Tweening.TweenSettingsExtensions),
typeof(DG.Tweening.ShortcutExtensions),
typeof(DG.Tweening.DOTweenModuleUI),

//dotween pro 的功能
typeof(DG.Tweening.DOTweenPath),
typeof(DG.Tweening.DOTweenVisualManager),


使用:

--基本使用
rectTransform:DOAnchorPos(Vector2.New(end_pos_x, end_pos_y), 0.3)
transform:DOLocalMove(Vector3.New(x,y,0),0.15)
transform:DOLocalRotate(Vector3.New(0,0,0), time)
unity_uiimage:DOFade(0.8, 1)

--移除
transform:DOKill()

--设置缓动
rectTransform:DOAnchorPos(Vector2(0,0), 1):SetEase(CS.DG.Tweening.Ease.OutBack)

--设置完成回调
rectTransform:DOAnchorPos(Vector2(0,0), 1):OnComplete(function ()

end)

--队列queue
local queue = CS.DG.Tweening.DOTween.Sequence()
queue:Append(rectTransform:DOAnchorPos(Vector2(0,0), 1))
queue:AppendCallback(function() end)
queue:AppendInterval(2)
queue:Kill()



有时候,我们需要暂停游戏,都会将时间缩放改为0,DoTween可以设置为不受它的影响,从而继续播放

using UnityEngine;
using DG.Tweening;

public class TweenScal : MonoBehaviour {

	void Start () {
        Time.timeScale = 0;
        RectTransform rect = this.GetComponent<RectTransform>();
        Tweener t =  rect.DOMove(new Vector3(10, 10, 10), 10f);
        //设置这个动画不受时间缩放的影响,继续播放
        t.SetUpdate(true);
	}
}

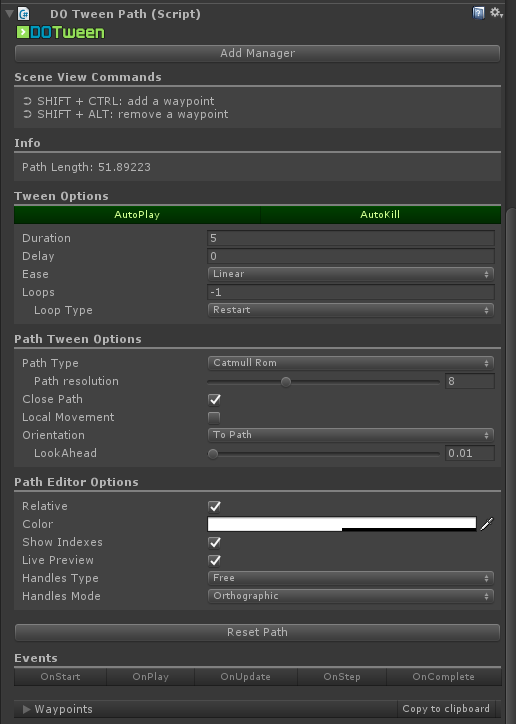

只要在需要添加路径的物体上添加组件DOTweenPath,在场景上按Shift+Ctrl添加点,Shift+Alt删除点,编辑好路径

在去设置好属性,可以是线性的,平滑曲线的,循环播放等,还有朝向

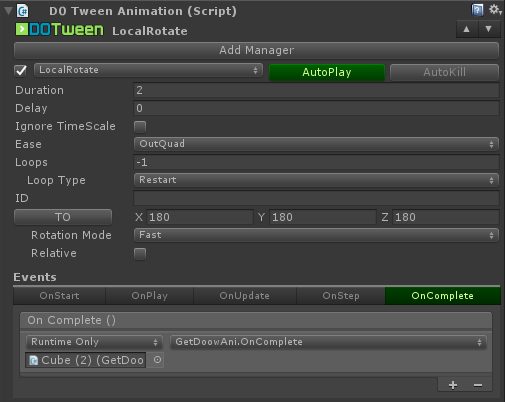

添加组件DOTweenAnimation,元素看意思,能看懂的



text.DOColor (Color.red, 2);//两秒渐变到红色
text.DOFade (0, 2);//两秒变成透明

震屏效果其实是对相机的随机震动

transform.DOShakePosition (10f,new Vector3(1,2,3));

transform就是相机

DOShakePosition的第一个参数是时间,第二个是个方向的强度


using UnityEngine.UI;
using DG.Tweening;
public Text text;
// Use this for initialization
void Start () {
	text.DOText ("我是个大傻逼", 10);
}


如果本来text没有文字,DOText()这段文字会在10秒慢慢显示出来

如果本来就有文字,会从头慢慢替换到结束。


void Start () {
	Tweener t = transform.DOLocalMoveX (0, 2);
	t.SetEase (Ease.OutBounce);//设置动画曲线
	t.OnComplete(Complete);//设置完成回调
}

void Complete(){
	Debug.Log ("动画完成了");
}


Ease是一个枚举类型,里面有很多内置好的动画曲线


每一个动画Tweener都有一个From()方法,表示的是倒过来放,从目标点到起点

transform.DOMoveX (3, 2).From (true);

参数true表示的是为参考坐标,就是说如果原来的起点x为2,那么目标值为5

默认是false,也就是目标值就是3


public RectTransform rect;
private bool isOn = false;

// Use this for initialization
void Start () {
	Tweener t =  rect.DOLocalMove (new Vector3 (0, 0, 0), 1);
	t.SetAutoKill (false);//Do创建的动画会自动销毁的
	t.Pause ();//创建完就会播放,这里不需要所以暂停
}

public void OnButtonClick(){
	if (!isOn) {
		rect.DOPlayForward ();//正播放
		isOn = true;
	} else {
		rect.DOPlayBackwards ();//逆播放
		isOn = false;
	}
}


不单单是RectTransfrom,DoTween对很多的内置的类都做了Do方法的扩展

Tweener是Do类型的方法创建的动画对象
