using MiniJSON;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Runtime.InteropServices;
using TMPro;
using UnityEngine;
using UnityEngine.TextCore.LowLevel;
public class TextMeshFontAssetManager : MonoSingleton<TextMeshFontAssetManager>
{
private Dictionary<string, TMP_FontAsset> AddFontWithPathList = new Dictionary<string, TMP_FontAsset>();
[DllImport("__Internal")]
private static extern string __NT_GetSystemFonts();
public void AddFontAsset(ScriptableObject fontAsset)
{
if (CheckFontAsset(fontAsset)) return;
var def = TMP_Settings.defaultFontAsset;
def.fallbackFontAssetTable.Add(fontAsset as TMP_FontAsset);
}
public void RemoveFontAsset(ScriptableObject fontAsset)
{
if (!CheckFontAsset(fontAsset)) return;
var def = TMP_Settings.defaultFontAsset;
def.fallbackFontAssetTable.Remove(fontAsset as TMP_FontAsset);
}
public bool CheckFontAsset(ScriptableObject fontAsset)
{
TMP_FontAsset font = fontAsset as TMP_FontAsset;
var def = TMP_Settings.defaultFontAsset;
return def.fallbackFontAssetTable.Contains(font);
}
public void AddWithOSFont(List<string> tb)
{
//这里是获取到设备上的字体路径列表 提取名字把需要的动态添加
Dictionary<string, string> fontPaths = new Dictionary<string, string>();
IEnumerable tempPaths = null;
#if UNITY_IPHONE && !UNITY_EDITOR
//IOS的Font.GetPathsToOSFonts在2019.4.7之前获取的为空，所以写了个接口获取，接口内容在Unity/IOS笔记本
string jsonData = __NT_GetSystemFonts();
if (!string.IsNullOrEmpty(jsonData))
{
tempPaths = Json.Deserialize(jsonData) as List<object>;
}
#else
tempPaths = Font.GetPathsToOSFonts();
#endif
if (tempPaths == null)
return;
foreach (string path in tempPaths)
{
string key = Path.GetFileNameWithoutExtension(path);
if(!fontPaths.ContainsKey(key))
fontPaths.Add(key, path);
}
for (int i = 0; i < tb.Count; i++)
{
string fontname = tb[i];
if (fontPaths.ContainsKey(fontname))
{
AddFontAssetByFontPath(fontPaths[fontname]);
}
}
}
//可以从网上下载字体或获取到本地自带字体
public void AddFontAssetByFontPath(string fontPath)
{
if (AddFontWithPathList.ContainsKey(fontPath))
return;
Font font = new Font(fontPath);
TMP_FontAsset tp_font = TMP_FontAsset.CreateFontAsset(font, 20, 2, GlyphRenderMode.SDFAA, 512, 512);
AddFontAsset(tp_font);
AddFontWithPathList.Add(fontPath, tp_font);
}
public void RemoveFontAssetByFontPath(string fontPath)
{
if (!AddFontWithPathList.ContainsKey(fontPath))
return;
TMP_FontAsset tp_font = AddFontWithPathList[fontPath];
RemoveFontAsset(tp_font);
}
public int GetSystemLangeuage()
{
return (int)Application.systemLanguage;
}

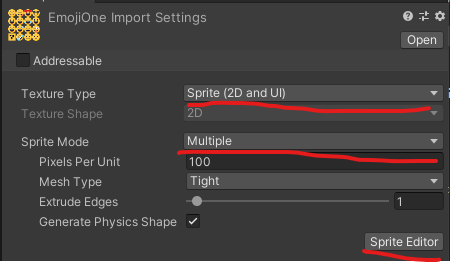

}先制作一张包含所有表情的图集，导入Unity，修改图片类型和模式，然后编辑图片，切割为一个一个Sprite表情（可以使用工具自动完成，TexturePacker打包图集和TexturePacker Importer插件将打包的图集转化）

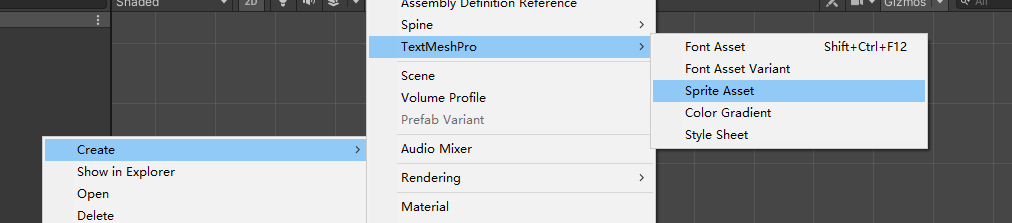

然后右键大的Sprite，创建出Sprite Asset

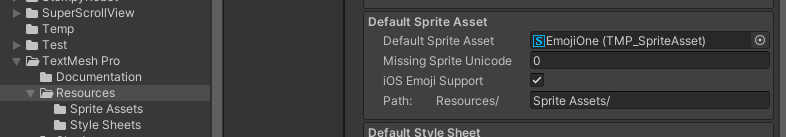

最后，打开TMP Settings，将创建的Sprite Asset设置为默认的表情
使用：
打开Sprite Asset，可以在SpriteCharacterTable看到一个个的表情和对应的Index
使用的时候输入<sprite=Index>就可以
function M:SetLimitByteLength(length) self.limitLength = length + 1 --不知道为啥 不加1就不正确 self:RemoveOnValidateInput() --self.unity_uitextmeshinput 为Input组件 self.__onValidateInput = handler(self,self.OnValidateInput) self.unity_uitextmeshinput.onValidateInput = self.__onValidateInput end --lua去长度为字节长度 function M:OnValidateInput(text,charIndex,c) if (#(text .. c) > self.limitLength ) then return '\0' --大于的时候返回空字符 此时会输入无效了 else return c end end function M:RemoveOnValidateInput() if self.__onValidateInput ~= nil then self.unity_uitextmeshinput.onValidateInput = nil self.__onValidateInput = nil end end

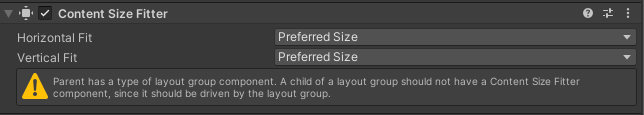

ContentSizeFitter自适应内容
Horizontal Fit和Vertical Fit如果两个都选择PreferredSize将会优先水平方向的，也就是随着内容的增加，只会修改width属性使用内容。
如果要使用水平方向的，可以固定width宽度，设置Horizontal Fit为Unconstrained、Vertical Fit为PreferredSize，当内容这一个宽度不够放时就会向下扩展修改height了。
背景和文本结构：

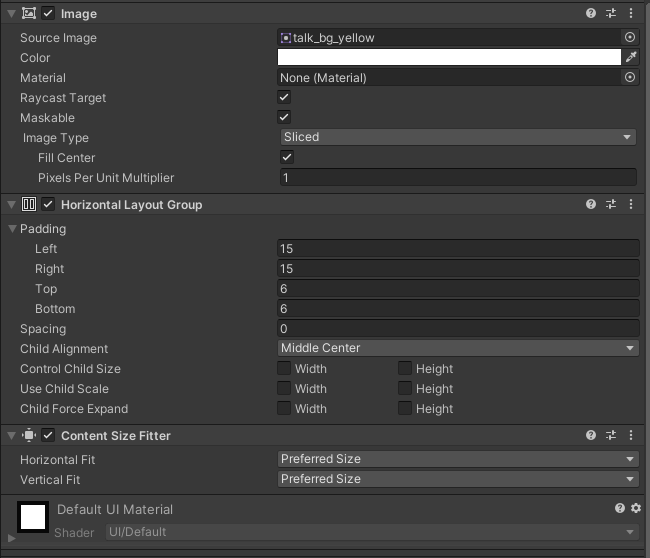

背景MsgImage组件（使用九宫格）：
文本MsgText组件（程序主要对这个组件进行操作）：

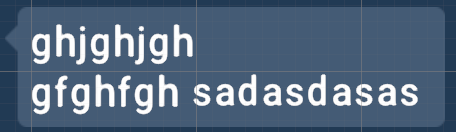

结构设置完效果：
程序控制适应方向：
--item.txt_msg 文本组件 --item.fitter_msg 文本的Content Size Fitter组件 --self.MaxPreferredWidth 一行文本允许的最大宽度 --self.PreferredHeight 一行文本的高度 function M:SetItemText(item,content) self:ResetItem(item) --假设水平够用 item.txt_msg:SetText(content) if(item.txt_msg:GetPreferredWidth() > self.MaxPreferredWidth) then --水平宽度超过了允许的最大宽度 item.txt_msg:SetSizeDelta(Vector2(self.MaxPreferredWidth,0)) --设定固定宽度，垂直适应 item.fitter_msg:SetFitVertical() local allTextHight = item.txt_msg:GetPreferredHeight() --获取到文本的总高度，对列表的item高度设置有用 end end function M:ResetItem(item) item.fitter_msg:SetFitHorizontal() item.txt_msg:SetSizeDelta(Vector2(0,self.PreferredHeight)) --固定一行文本高度，水平适应 end
总结：
1.对文本组件挂载ContentSizeFitter，通过PreferredWidth、PreferredHeight来获取宽高
2.如果文本的PreferredWidth超过了最大设置宽度，则使用固定宽度使用垂直适应，如果没有，使用基础高度水平适应
2.背景使用计算的方式设置宽高
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using UnityEngine;
using UnityEngine.UI;
public class CaptureComponent : MonoBehaviour
{
private Camera _uguiCamera;
private RectTransform rectTransform;
private string basePath;
private void Awake()
{
_uguiCamera = GameObject.FindGameObjectWithTag("GuiCamera").GetComponent<Camera>();
rectTransform = this.GetComponent<RectTransform>();
basePath = Application.persistentDataPath + "/share/";
if (!Directory.Exists(basePath)) Directory.CreateDirectory(basePath);
}
public void CaptureScreenByRect(Action<string> cb,string name="")
{
if (string.IsNullOrEmpty(name))
{
name = basePath + UnityExtends.Calculationmd5(DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss.ffff"))+".png";
}
StartCoroutine(CaptureScreenAsync(name, cb));
}
public IEnumerator CaptureScreenAsync(string path, Action<string> cb)
{
yield return new WaitForEndOfFrame();
try
{
if (path != "")
{
Rect rect = rectTransform.rect;
Vector3 startWorldPos = rectTransform.TransformPoint(rect.x, rect.y, 0);
Vector3 endWorldPos = rectTransform.TransformPoint(rect.x + rect.width, rect.y + rect.height,0);
startWorldPos.z = 0;
endWorldPos.z = 0;
Vector3 startViewPos = _uguiCamera.WorldToViewportPoint(startWorldPos);
Vector3 endViewPos = _uguiCamera.WorldToViewportPoint(endWorldPos);
rect.x = Screen.width * startViewPos.x;
rect.y = Screen.height * startViewPos.y;
rect.width = Screen.width * (endViewPos.x - startViewPos.x);
rect.height = Screen.height * (endViewPos.y - startViewPos.y);
if (rect.x < 0 || rect.y < 0 || (rect.x + rect.width) > Screen.width || (rect.y + rect.height) > Screen.height)
{
//读取屏幕像素越界，界面不要超过屏幕显示区域
Debug.Log("窗体超过屏幕");
cb?.Invoke("");
}
else
{
//Debug.Log(rect.width + " " + rect.height);
Texture2D capture = new Texture2D((int)(rect.width), (int)(rect.height), TextureFormat.RGB24, false);
capture.ReadPixels(rect, 0, 0);
capture.Apply();
byte[] datas = capture.EncodeToPNG();
File.WriteAllBytes(path, datas);
if (cb != null)
{
Debug.Log(path);
cb(path);
}
}
}
else
cb?.Invoke("");
}
catch (Exception e)
{
Debug.LogError("CaptureScreenByRect:" + e.Message);
}
}
}Button btn = Images[k].GetComponent<Button>();
if (btn != null)
{
if (btn.transition == Selectable.Transition.SpriteSwap)
{
int counter = 0;
SpriteState state = btn.spriteState;//通过这个属性获取，是一个结构体
if (state.highlightedSprite == a)
{
counter++;
state.highlightedSprite = b;
}
if (state.pressedSprite == a)
{
counter++;
state.pressedSprite = b;
}
if (state.selectedSprite == a)
{
counter++;
state.selectedSprite = b;
}
if (state.disabledSprite == a)
{
counter++;
state.disabledSprite = b;
}
if (counter > 0)
{
btn.spriteState = state;
}
}
}
首先在TextMeshPro的文字显示中标记为<link ID=内容 等下脚本获取到的>展示内容</link>
新建脚本挂载到有这个TextMeshPro组件的物体上
using UnityEngine;
using TMPro;
using UnityEngine.EventSystems;
using System;
[RequireComponent(typeof(TextMeshProUGUI))]
public class TextMeshProLinkClick :MonoBehaviour, IPointerClickHandler
{
private TextMeshProUGUI _text;
private Camera _uguiCamera;
private Action<string> _action;
private void Awake()
{
_text = this.GetComponent<TextMeshProUGUI>();
_uguiCamera = GameObject.FindGameObjectWithTag("GuiCamera").GetComponent<Camera>();
}
public void OnPointerClick(PointerEventData eventData)
{
Vector3 pos = new Vector3(eventData.position.x, eventData.position.y, 0);
int linkIndex = TMP_TextUtilities.FindIntersectingLink(_text, pos, _uguiCamera);
if (linkIndex > -1)
{
TMP_LinkInfo linkInfo = _text.textInfo.linkInfo[linkIndex];
if (this._action != null)
{
//linkInfo.GetLinkID() 获取的就是ID属性的内容
this._action(linkInfo.GetLinkID());
}
}
}
public void SetOnClick(Action<string> callback)
{
_action = callback;
}
public void RemoveOnClick()
{
_action = null;
}
}
标签内容如果一直到下一个标签且没有镶嵌的不需要关闭标签
1.文字排版
<align="right">Right
<align="center">Center
<align="left">Left
2.颜色
<color="red">Red <color=#005500>Dark Green <#0000FF>Blue <color=#FF000088>Semitransparent Red
<alpha=#FF>FF <alpha=#CC>CC
3.粗体和斜体
The <i>quick brown fox</i> jumps over the <b>lazy dog</b>.
4.字体间距
<cspace=1em>Spacing</cspace>
5.字体
<font="NotoSans" material="NotoSans Outline">a different material?
6.行高
<line-height=50%>Line height at 50%
7.小大写、首字母大写
<lowercase>Alice and Bob watched TV.</lowercase>
<uppercase>Alice and Bob watched TV.</uppercase>
<smallcaps>Alice and Bob watched TV.</smallcaps>
8.标记背景色透明度
<mark=#ffff00aa>can be marked with</mark>
9.不转义标签
<noparse><b></noparse>
10.水平定位
at <pos=75%>75%
at <pos=25%>25%
at <pos=50%>50%
11.字体大小
<size=100%>Echo</size>
12.图片精灵
<sprite name="Default Sprite Asset_4" color=#55FF55FF>
13.删除线和下划线
The <s>quick brown</s> fox jumps over <u>the lazy dog</u>.
14.上下标注
We have 1m<sup>3</sup> of H<sub>2</sub>O.
15.超链接
<link="ID"></link>
Sprite b;
Image image;
if (b.border.w > 0 || b.border.x > 0 || b.border.y > 0 || b.border.z > 0)//只要有一条边有拖动过，认为有九宫图设置
{
image.type = Image.Type.Sliced;
}
else
{
image.type = Image.Type.Simple;
}
image.sprite = b;
